Toyota Corolla Engine Swap Compatibility Chart And Expert Tips!

Are you in need of a Toyota Corolla engine swap compatibility chart?

When you want to do an engine swap to your vehicle, it is important to know what engines are compatible and which ones are not. Engine interchange can improve your vehicle’s performance and power, but you need to make sure that you use the right one for your car.

So in today’s post, we will share with you comprehensive information around engine swaps through a helpful chart and other tips you need to know. Let’s dive right into it.

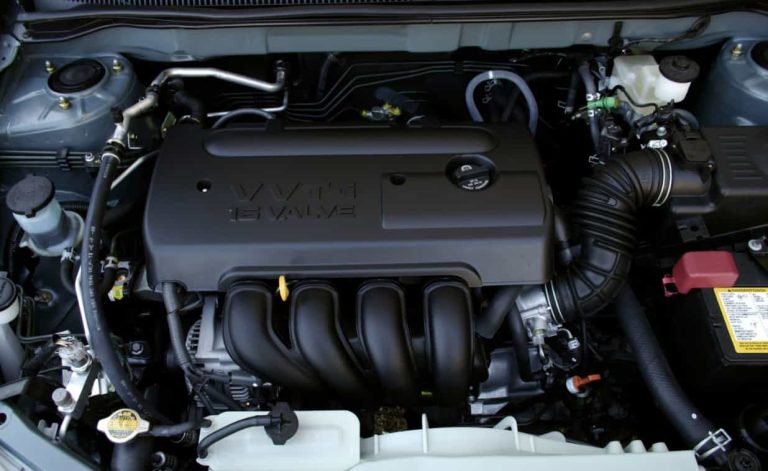

toyota corolla engine swap compatibility chart

Toyota Corolla Engine Swap Compatibility Chart

No matter what your reason is for doing an engine swap to your Toyota Corolla, it is important to know that this is a risky and overwhelming task to take on. Moreover, you need to take note of important factors before you put a new engine in your vehicle. These include the model year, engine configuration and size, as well as your state or city’s emission regulations. Plus, compatibility is a major factor to keep in mind since not all engines can work for your vehicle.

Additionally, the process is not just a matter of swapping engines. You need to make sure that your new engine is compatible with your fuel lines, intake and exhaust, electrical system, drivetrain, and a few other factors.

When it comes to swapping engines, here is our Toyota Corolla engine swap compatibility chart you need to know:

Toyota / Inline-4 / ZR – Petrol / 2ZR / 2ZR-FE
Toyota Corolla2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
Toyota / Inline-4 / AZ – Petrol / 2AZ / 2AZ-FE
Toyota Camry2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Toyota Corolla2009, 2010, 2011
Toyota Highlander2001, 2002, 2003, 2004, 2005, 2006, 2007
Toyota RAV42004, 2005, 2006, 2007, 2008
Toyota / Inline-4 / ZZ – Petrol / 1ZZ / 1ZZ-FE
Toyota Celica1999, 2000, 2001, 2002, 2003, 2004, 2005
Toyota Corolla2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
Toyota / Inline-4 / ZZ – Petrol / 2ZZ / 2ZZ-GE
Toyota Celica1999, 2000, 2001, 2002, 2003, 2004, 2005
Toyota Corolla2005, 2006

Important Things to Know Before Doing An Engine Swap

It is one thing to know what engines are compatible with your Toyota Corolla based on the model year and engine specs. However, there is more that comes with performing an engine swap. For instance, you need to understand what your current engine’s specifications are.

You can determine the answer to this question by checking under the hood and by following these steps:

1. Check the engine information detail

You can find the answer to this question on your engine, radiator support, or your firewall. This should provide details on the type and name of your engine, including the engine specifications and size.

2. Check the manual

When in doubt, you need to read your owner’s manual to find accurate information about the specific engine you have, as well as the type, name, and other details.

3. Search your engine code.

This is the most important detail you need to find about your engine. Basically, it is a combination of numbers and letters stamped on your engine block. This code will help you when searching for engine details online or when you want to buy an engine from a mechanic or a dealership.

But it is important to keep in mind that in the case of older cars or second hand vehicles, the original owner may have done some modifications or engine swaps in the past. So, the engine you find under your hood may not be the same as what you find in the owner’s manual. This is why you need to check with a specialist when in doubt.

Also, an engine swap project may be a hit or miss in some cases. Yet, it must never be since this will take a toll on your engine and vehicle’s lifespan. Thus, you need to take as much time researching and making sure you got the details right before you get started.

If you want to be certain that the engine will definitely fit your Toyota Corolla, here are important pointers to keep in mind:

1. Drivetrain and axles

Your engine’s output and size need to be compatible with the drivetrain and axle capacity you currently have. These components convert your engine’s rotational power right into a linear motion, which then moves your wheels. If your power and torque are too high for these parts to handle, then these should also be replaced to avoid any issue with your engine swap.

2. Pedal assembly

An engine swap needs a little more work on your pedals and gearboxes, and these often require more tasks than a mere cable swap. For instance, older throttle bodies may need the right cable. But in the case of electronically-controlled ones, these are more complicated and will also need a pedal assembly, wiring and ECU change.

There are two varieties of clutch pedals including a cable-operated assembly that means you can reuse your original cable when it comes to modern transmissions. If you have a hydraulic-operated gearbox, you can place this into your older chassis when the transmission is cable-operated and when there are similar specifications.

3. Shifter

When you do your engine swap right, it can be quite satisfying because of the great results you can expect. However, you need to be sure that you have a matching shifter tunnel. This is important since you would not want to simply mix and match components as this can result in big problems in the future. Thus, check the shifter tunnel and be sure it fits properly.

4. Fuel system

There are many instances of fuel system incompatibility issues when you do an engine swap because of how the two engines have different fuel delivery parts and systems. Various motors have unique pumps, fuel lines, hoses, tanks, filters, and fuel injection systems. So, be sure that your new engine matches your fuel system to avoid any problems.

5. Cooling system

As you place a larger engine, more cold air intake is required – but there is not much space for an upgrade. This is why you need to use an electric cooling fan, which comes in handy for a larger engine with a tight space. Sometimes, custom heater hoses and radiator hoses may be required to ensure the best results.

Read More: The 12th Gen Corolla – All You Need To Know

Final Thoughts

We hope you have found our Toyota Corolla engine swap compatibility chart helpful for you. Keep in mind that an engine swap involves a complex process. You need to make sure that you get the right parts and that the new engine is compatible with your vehicle.

Doing an engine swap is also expensive and can cost between $500 to as much as $9000. There is also much time and effort required in doing the research since you have to be careful with buying the right components to avoid further damage and issues in the future.
