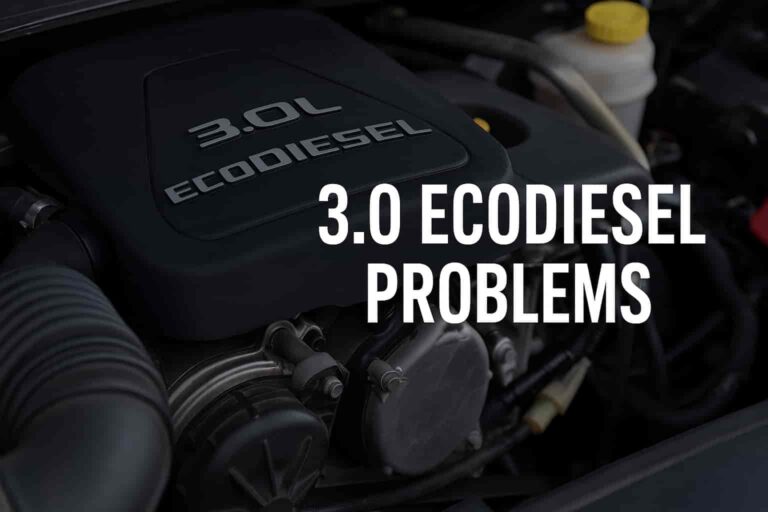

3.0 EcoDiesel Problems: Common Issues, Costs & Model Years to Avoid

The 3.0L EcoDiesel engine, introduced by VM Motori and later optimized by FCA (now Stellantis), was designed to deliver fuel-efficient torque performance for light-duty trucks and SUVs. It gained popularity in models like the Ram 1500, Jeep Grand Cherokee, and Jeep Gladiator, particularly for buyers seeking diesel efficiency without jumping to heavy-duty platforms.

Despite its strengths in towing capability and fuel economy—up to 29 MPG highway in some models—this engine is also known for a pattern of mechanical and emissions-related issues. Owners have reported a range of problems involving the EGR system, timing components, diesel particulate filters (DPF), and fuel injection systems, many of which occur before reaching 100,000 miles. Some issues triggered class-action lawsuits and extended warranty programs.

This article outlines every major 3.0 EcoDiesel problem, categorized by severity, repair cost, and model year, with precise data sourced from owner reports, recall databases, and technical service bulletins (TSBs). Whether you’re a current EcoDiesel owner or evaluating a used diesel truck, understanding these failure patterns is essential. We also provide insights on maintenance practices, recall history, and engine reliability after high mileage.

What are the most common 3.0 EcoDiesel problems reported by owners?

The most common 3.0 EcoDiesel problems include EGR cooler failure, timing chain tensioner wear, fuel injector malfunction, and DPF clogging.

There are 4 high-frequency failure points reported across model years:

1. EGR Cooler & Valve Cracks
   EGR cooler failure often results in coolant leaks or internal cracking. This issue leads to white exhaust smoke, engine overheating, or in severe cases, hydrolock. It is especially prevalent in 2014–2016 models, confirmed by multiple TSBs and the 2019 emissions recall.
2. Timing Chain Tensioner Failure
   Premature wear of the timing chain tensioner causes rattling at cold start, loss of timing synchronization, or complete engine shutdown. This problem emerges as early as 60,000 miles and typically requires engine-out repairs, costing over $2,500.
3. Fuel Injector Leaks or Clogging
   Fuel injectors in the 3.0L EcoDiesel are susceptible to carbon buildup and seal degradation, resulting in misfires, rough idle, and excessive smoke. These issues appear more frequently in trucks that idle for extended periods or run short trips.
4. DPF and Emissions System Blockages
   DPF clogging occurs when regeneration cycles fail. This triggers check engine lights (P242F, P2002) and reduced engine power. A full DPF replacement can exceed $3,000 if neglected.

Why does the 3.0 EcoDiesel have frequent DPF and DEF system problems?

DPF and DEF failures in the 3.0 EcoDiesel are caused by short trip usage, incorrect regeneration cycles, and EGR system cross-contamination.

There are 3 primary causes behind frequent diesel emissions failures:

1. Short Trip Driving and Incomplete Regeneration
   The EcoDiesel requires extended highway drives to initiate DPF regeneration. Trips under 15 miles prevent exhaust from reaching the necessary 650°F, resulting in soot accumulation. Over time, this leads to DPF saturation and power loss.
2. Malfunctioning EGR Coolers Feeding Excessive Soot
   When the EGR cooler fails, it releases unburned hydrocarbons and coolant vapor into the intake, accelerating DPF saturation. This overloads the system and shortens intervals between forced regenerations.
3. DEF Crystallization and Injector Blockages
   The DEF injector nozzle can become crystallized, especially in cold climates or when low-quality DEF fluid is used. This triggers low DEF pressure codes and disables active regeneration.

How reliable is the 3.0L EcoDiesel after 100,000 miles?

The 3.0L EcoDiesel shows a 35–40% failure rate for major components after 100,000 miles, based on aggregated owner repair data.

There are 2 dominant long-term reliability concerns:

1. EGR System Degradation Between 100k–130k Miles
   Coolers, valves, and sensors within the EGR system tend to fail cumulatively past the 100k mark. Extended emissions warranty covers certain parts for up to 10 years or 120,000 miles, but not labor beyond powertrain coverage.
2. Oil Pump and Timing Chain Wear
   Metal shavings in oil samples from high-mileage EcoDiesel trucks often indicate timing gear friction. Without preemptive service, this leads to catastrophic engine failure, with replacement costs between $8,000–$12,000.

The engine can exceed 200,000 miles with strict adherence to 5,000-mile oil changes, low-ash oil use (MS-11106), and frequent highway driving. However, used trucks without complete service records show dramatically higher failure incidence.

What are the symptoms of a failing 3.0 EcoDiesel engine?

A failing 3.0 EcoDiesel engine typically shows 5 warning symptoms: loss of power, increased smoke, engine knocking, dashboard warnings, and rough idle.

These symptoms are grouped based on severity:

1. Severe Symptoms (Indicate Immediate Engine Risk)

• Loss of Torque or Power Under Load
  Sudden reduction in towing capacity or throttle response often points to turbocharger failure or fuel delivery issues.
• Engine Knocking or Rattling at Cold Start
  This noise usually signals timing chain slack or low oil pressure, both of which can lead to engine seizure.

2. Moderate Symptoms (Require Urgent Diagnosis)

• Black Smoke During Acceleration
  Excessive black exhaust indicates incomplete combustion, often due to a clogged EGR valve or failing injector.
• Check Engine Light with DTCs (P0401, P2463, P026A)
  These codes relate to EGR flow, DPF restriction, and charge air cooler efficiency—common in EcoDiesel engines.

3. Mild Symptoms (Early Warning Signs)

• Rough Idle or Hesitation on Startup
  Caused by glow plug wear, carbon buildup, or early injector imbalance. These symptoms appear gradually before major failures.

What model years of the EcoDiesel engine are most problematic?

The 2014–2016 EcoDiesel model years have the highest failure rates, particularly for EGR, timing chain, and emissions components.

These model years are classified as follows:

1. High-Risk Model Years (2014–2016, Gen 1)

• Engines in this range show the most warranty claims and emissions-related class action cases.
• TSBs documented oil cooler failures, DEF injector corrosion, and EGR cooler cracks.
• 2014 Ram 1500 EcoDiesel units had the highest recall rate per VIN among diesel half-ton trucks, based on NHTSA data.

2. Moderate-Risk Model Years (2017–2019, Gen 2)

• FCA made hardware adjustments and ECU updates, but timing chain slack and DPF issues persisted.
• Reliability improved marginally, but owners still reported issues by 60,000–90,000 miles.

3. Lower-Risk Model Years (2020–2022, Gen 3)

• The third-gen EcoDiesel introduced lower-friction pistons, improved injection timing, and updated cooling systems.
• While still affected by emissions-related software limitations, hardware reliability improved.
• Most issues in these years are tied to software calibration, not mechanical faults.

How much does it cost to fix the most common EcoDiesel problems?

Repairing the most common EcoDiesel issues costs between $900 and $3,800 per item, depending on labor rates and part availability.

Here are specific cost ranges based on component type:

1. EGR Cooler or Valve Replacement

• Cooler-only replacement: $1,100–$1,600
• Valve + cooler combo service: $1,800+
• Requires coolant flush, recalibration, and gasket replacements.

2. DPF or DEF System Repairs

• DPF cleaning: $500–$700
• Full DPF replacement: $2,500–$3,800
• DEF injector replacement: $600–$900
• These repairs are not covered beyond the emissions warranty or if the system was deleted.

3. Timing Chain and Oil Pump Repair

• Timing chain kit with labor: $2,300–$3,000
• Oil pump + timing service: $3,500+
• Often requires engine removal, especially on early Ram models due to limited access clearance.

What legal actions or recalls have involved the 3.0 EcoDiesel engine?

The 3.0 EcoDiesel engine was subject to a major emissions lawsuit in 2019, several federal recalls, and multiple TSBs related to EGR, DPF, and ECU software.

There are 3 legal and technical intervention categories:

1. 2019 Emissions Settlement and FCA DieselGate Case

• In January 2019, the U.S. Department of Justice (DOJ), EPA, and CARB fined FCA $800 million for installing undisclosed emissions defeat devices in over 100,000 vehicles (2014–2016 Ram 1500 and Jeep Grand Cherokee).
• Affected owners received cash compensation up to $3,075, and required software recalibrations that in some cases worsened drivability.

2. FCA and Stellantis Recalls Involving Engine Components

• Recall R09: Addressed EGR cooler cracking, which could cause engine fires.
• Recall W58: Related to DEF dosing malfunctions, resulting in limp mode and failed emissions.
• Recall V08: Targeted crankshaft sensor failure that led to unexpected stalling at highway speed.

3. Technical Service Bulletins (TSBs)

• FCA released over 15 TSBs for recurring 3.0 EcoDiesel issues, including oil dilution, turbo vane control, and DPF regeneration logic updates.
• TSB 18-018-20, for instance, updated the PCM flash to correct incorrect soot accumulation calculations.

How does the 3.0 EcoDiesel compare to other diesel engines in reliability?

The 3.0 EcoDiesel ranks below the Duramax 3.0 and Ford Power Stroke 3.0 in overall reliability and maintenance frequency.

This assessment is based on owner surveys, repair intervals, and cost of failure:

1. EcoDiesel vs. Duramax 3.0 (GM LM2)

• The Duramax 3.0L LM2, used in the Chevy Silverado and GMC Sierra, shows fewer timing chain issues, longer DPF life, and more stable oil pressure over time.
• JD Power and RepairPal data show the Duramax has 22% fewer major repairs in the first 100,000 miles.
• However, the EcoDiesel provides slightly better towing efficiency under 8,000 lbs.

2. EcoDiesel vs. Ford 3.0 Power Stroke

• The Ford 3.0L Power Stroke has a shorter production run (2018–2021) but fewer emissions-related complaints.
• Its variable-geometry turbo is more durable than early EcoDiesel turbo designs, though Ford’s aluminum block is more prone to thermal fatigue.
• The EcoDiesel holds a stronger aftermarket support ecosystem due to longevity and volume.

3. Cost of Ownership Comparison

Should you avoid buying a used truck with a 3.0 EcoDiesel engine?

You should avoid buying a used 3.0 EcoDiesel truck without full service records, especially if it belongs to the 2014–2016 model years.

There are 2 key scenarios where caution is required:

1. High-Risk Used EcoDiesel Profiles

• Trucks with incomplete oil change history, short-trip driving habits, or long idle durations often suffer early EGR and turbo issues.
• Units that underwent emissions recalibration but lack documentation of post-reflash servicing are particularly unstable.
• Avoid vehicles with active DTCs or dashboard lights—even if cleared recently.

2. Legal and Mechanical Red Flags

• Trucks with emissions system deletions (EGR or DPF removed) are illegal in most U.S. states and may void resale options or federal protections.
• Confirm if extended emissions warranty (10yr/120k miles) is still valid. Ask for official printouts from Chrysler or Jeep dealerships using the VIN.

To safely purchase a used EcoDiesel:

• Request OBD-II scan reports and dealer service records.
• Inspect for crankcase pressure, DPF regeneration history, and coolant residue near EGR housing.

What maintenance practices can prevent common 3.0 EcoDiesel issues?

To prevent EcoDiesel failures, you must follow strict 5,000-mile oil change intervals, use API CJ-4/CK-4 MS-11106-certified oil, and ensure consistent highway driving to complete DPF regenerations.

There are 4 proactive maintenance strategies that significantly reduce failure risk:

1. Perform Oil and Filter Changes Every 5,000 Miles

• Engine reliability drops sharply when oil change intervals exceed 8,000 miles.
• Use only low-ash synthetic diesel oil that meets MS-11106 specification. Avoid generic blends, even if labeled “diesel safe.”
• Replace the fuel filter every 20,000 miles and PCV filter every 60,000 miles to prevent oil vapor buildup.

2. Allow Full DPF Regeneration Cycles

• Drive at least 20 uninterrupted highway miles per week at steady speeds to let DPF reach regeneration temperature.
• Monitor DPF % load using a Bluetooth OBD-II scanner if available. Canceling regenerations prematurely will force costly cleanings later.

3. Avoid Extended Idling and Short-Trip Driving

• The 3.0 EcoDiesel was not engineered for short, urban trips.
• Excessive idling increases EGR soot production and reduces turbo efficiency. Limit idling to under 5 minutes unless required for towing.

4. Use High-Quality Diesel Fuel and DEF Fluid

• Always buy diesel from high-volume stations to avoid water or algae contamination.
• Use DEF fluid that is ISO 22241-compliant and store it away from sunlight. Expired or low-purity DEF causes injector crystallization.

By following these steps and inspecting the EGR valve, turbo actuator, and oil cooler seals during every major service, EcoDiesel owners can extend engine life well beyond 200,000 miles. These preventive actions not only reduce repair costs but also maintain fuel efficiency, preserve emissions compliance, and improve long-term resale value—especially for post-2020 models, which show better mechanical resilience under proper care.
